5600 Ocean Series

The Highlights

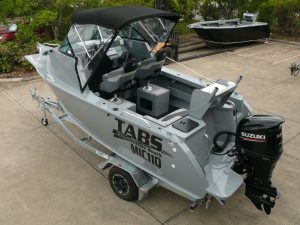

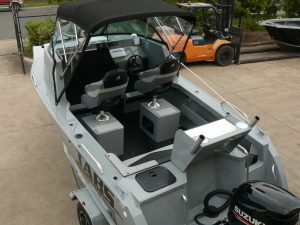

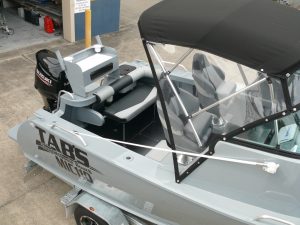

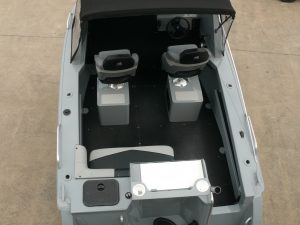

Please note the images may include optional extras and/or modifications. Video is a 5800

	5600	6000	6400
Length Overall (m)	5.95	6.45	6.85
Beam (mm) (approx)	2400	2500	2500
Material Bottoms 5083 High Tensile	4mm	4mm	5mm
Material Sides 5083 High Tensile	-	-	4mm
Material Sides 5052	4mm	4mm	-
Fuel Tank Size (approx)	150L	180L	180L
Freeboard (approx mm)	700	730	750
Deadrise (Fast Planing Hull)	Variable	Variable	Variable
Transom	L/S	X/L	X/L
Min Horsepower (Hp)	115	140	150
Max Horsepower (Hp)	150	175	200
Hull Weight (approx Kg)	675	765	914
Number of People (up to)	6	7	7

	5600	6000	6400
Ally Live Bait Tank Plumbed with Rule 800GPH Pump	✓	✓	✓
Walk Thru Transom	✓	✓	✓
Swim Platform Stbd	300mm	400mm	400mm
Swim Platform Portside	300mm	400mm	400mm
Under Step S/S Boarding Ladder (Stbd)	✓	✓	✓
Side Pockets x 2	✓	✓	✓
Battery Enclosure for 2 x Batteries w/1 Hatch	✓	✓	✓
Battery Isolator Recess with Hatch	✓	✓	✓
Seats Deluxe incl Bolster	2	2	2
Drivers Seat Slide	✓	✓	✓
Rear Folding Lounge & Backrest	✓	✓	✓
Cabin Cushions (Fabric) (Full Height Head Room)	✓	✓	✓
Foot Rest (Driver & Passenger)	✓	✓	✓
Heavy Duty 3 Piece Reinforced Windscreen	✓	✓	✓
Aluminium Weld in Rod Holders	4	4	4
Ally Bait Table with Storage Tray, Drink Holders & 3 x Rod Holders	✓	✓	✓
Cleats	3	3	3
LED Nav & Stern Lights	✓	✓	✓
Bilge & Bait Pumps	✓	✓	✓
6 Gang Switch Panel	✓	✓	✓
Isolator Switch	✓	✓	✓
Hydraulic Steering Seastar	✓	✓	✓
Large Carpeted Anchor Well with Drain	✓	✓	✓
Carpeted Hardwood Floor	✓	✓	✓
Bow Sprit & Bow Roller	✓	✓	✓
Bow Rails & Side Rails	32mm	32mm	32mm
Transom Rails x 3	25mm	25mm	25mm
Raised Sheerline	✓	✓	✓
Painted White w/Stripes	✓	✓	✓
Reverse Chines	✓	✓	✓
Spray Chines Full Length	✓	✓	✓
Transducer Brackets	2	2	2
Transom Tie Down Lugs	2	2	2
Transom Deck Tread	✓	✓	✓
